NEW - ReadyLIFT
Off Road 6.5" Lift Kit Systems made to fit the 2014-2016 Chevy
Silverado / GMC Sierra 1500 Z71/OFFROAD - 4WD trucks ONLY. - Includes
SST3000 Rear Shocks.
This kit is to be used on Z71 trucks which sit near level at
factory ride height (stock height). If your Z71 has approximately 2" of
factory front-to-rear rake, you wil need to choose from the standard 4WD
kits.
Dealers - Read This To Learn How To Build Your Own MLS Kit
Run your stock wheels or most 17" or larger aftermarket wheels: Wheel Width: Stock Wheels Ok or 9 wheel w/ 4.75 - 5.5 BS
ReadyLIFT now offers the best comprehensive off road lift kit
designed specifically for 2014-2016 Chevy Silverado/GMC Sierra 1500 4WD -
Z71 or Z71 Offroad ONLY
- trucks. Based on our Multi-Lift-System (MLS) design principals which
allows an GM 1500 Z71 4wd owner to choose just how tall they want their
truck to sit, the new complete off road suspension systems feature the
absolute best design and components available. If you want a great Lift
solution for your 2014-2016 GM 1500 Z71 4WD that allows you to retain
use of your OEM wheels if you need to - This is the kit you have been
waiting for!

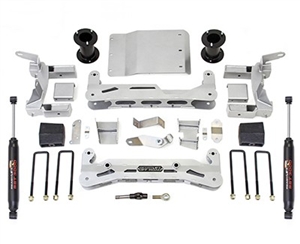

Made In U.S.A. - The Premium complete 6.5" front/ 4.0" rear 2014-2016 Chevy Silverado/GMC Sierra 1500 4WD Z71 - System kit - Includes SST3000 Rear Shocks - is
specifically designed to give you a quality lift and rugged off road
strength while maintaining the factory ride on the street. The Complete
kit
44-3350 6.5" Lift Kit features precision designed
laser cut and CNC formed subframe assemblies that directly bolt in.
Includes patent pending rack & pinion steering drop correction
system (U.S. Pat. App. No. 14/531,073) and an integrated differential
drop bracket system to insure correct CV axle angles and maxiumum
performance in 4WD mode. Patent Pending fabricated steel strut
extensions (U.S. Pat. App. No. 14/532,783) provide the Maximum 6.5" of
front lift while 5.0 tall OEM-style rear blocks provide a quality 4.0"
rear lift that doesn't sacrafice the ride. Total rear lift equals 4.0"
of lift when installed.This kit even includes a Patent Pending steering
extension to keep your steering performance like factory.
Bonus - No need to cut your steering rods like on
other kits which requires the tie rods to be shortened. This results in
reduced steering radius. Our steering rack drop down system allows you
to retain your stock tie rods without modifying them.
Bonus - The ReadyLIFT Complete MLS lift kits are the
only lift kits that will allow you to use your factory spare wheel and
tire in case of a flat.
The MLS sub frame and other components are powder coated with a
unique and improved Plascoat finish. The Plascoating on the MLS
components is a performance polymer alloy coating specifically designed
to provid a long lasting, tough coating for exterior applications. The
Plascoat finish is especially resistant to stress cracking with improved
abrasion and impact resistance as well as a great way to protect
against adverse weather conditions, detergents, salt spray and other
typical airborne pollutants.
Includes SST3000 Rear Shocks
Features & Benefits:
- Covered under the ReadyGuard Powertrain Warranty
- CNC formed steel sub-frame assemblies - bolt on installation.
- Patent Pending steering extension to retain factory steering quality.
- Special Plascoat performance polymer alloy long lasting and tough crack and scratch resistent finish.
- Exclusive integrated differential drop bracket system to insure correct CV angles.
- Fabricated heavy duty steel 6.5" lift strut extensions allows you to retain your factory front struts.
- Patent Pending rack & pinion steering drop system - first of its kind!
- OEM style 5.0" tall rear block provides 4.0" of rear lift.
- Includes SST3000 Rear Shocks
- The 44-3350 6.5" kit has been tested and meets the rigorous FVMSS certification standards for safety and quality.
- Install Time: 6 - 8 hours
- Max Tire: 35 x 12.50
- Does NOT increase front track width - Allows for use of OEM wheels
- Wheel Width: Stock Wheels Ok or 9 wheel w/ 4.75 - 5.5 BS
- Factory Aluminum Wheel with 5.75 BS - 35x12.50 x 17 with no trimming* at 6.5 ride height
- 17 x 8 Aftermarket Wheel with 4.75-5.5 BS - 35x12.50 x 17 with no trimming at 6.5 ride height
- 18 x 9 Aftermarket Wheel with 4.75-5.5 BS - 35x12.50 x 18 with no trimming* at 6.5 ride height
- 20 x 9 Aftermarket Wheel with 4.75-5.5 BS - 35x12.50 x 20 with no trimming* at 6.5 ride height
*There are many different variations of manufacturer aftermarket tire
and wheel combinations in both width, actual diameter, tread pattern,
etc. It is up to the installer to determine wheel and tire fitment on
the vehicle and guarantee that there is no rubbing of the tire on any
components, both inside, and outside surfaces. The above guide is for
reference only.
