ReadyLIFT
Suspension Inc. has used proven technological engineering methods to
produce a 3-inch SST Suspension Lift System (P/N 69-5276) for the 2012-2016 Toyota Tundra TRD / SR5 / Rock Warrior trucks featuring a new 2.0" Rear Block. The 3-inch intermediate Smart Strut Technology system fits all 2012-2016 Toyota Tundras TRD / SR5 / Rock Warrior (Crew Max, Double Cab, Standard Cab), including
both 2WD and 4WD models, particularly the TRD model trucks. In some
cases TRD Tundra trucks have less factory rake than
non-TRD models. On some TRD model trucks a one inch rear block is not
enough rear lift to level the rear with the front after installing the
3.0" front strut extension. This new tapered 2.0" rear block included in
the 69-5276 kit will give most TRD / SR5 / Rock Warrior trucks
approximately a one-half inch rear rake. This kit provides the owner
with the opportunity to upgrade to larger wheel and tire combinations up
to 35-inches in diameter while retaining the great stock ride and
handling characteristics.

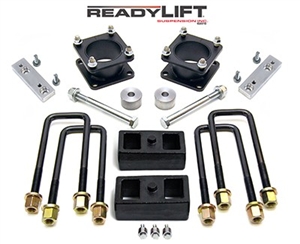

This
is a complete suspension lift kit that includes a powder coated steel
strut extension, front differential drop spacers, sway bar spacers, skid
plate spacers and new 2-inch rear lift block. The SST strut extension
and diff drop bracket has been designed to provide 3-inches of front
suspension lift while retaining the OEM safe suspension geometry. Unlike
other kits, the ReadyLIFT 3-inch suspension system requires no cutting
or strut spring pre-loading and installs quickly and safely using the
provided heavy-duty hardware. Quality step-by-step instructions are
provided with every kit.
Our 69-5276 SST Lift Kit for the Toyota
Tundra TRD / SR5 / Rock Warrior will get rid of that "stink bug" stance
while lifting the truck both front and rear and retaining your factory
ride. Toyota pickups are built around quality and ReadyLIFT has designed
this 3-&-2 lift system to retain the quality ride and handling that
you expect from a Toyota product.
Note:
It is ReadyLIFTs position that our objective is to provide a product
that levels the vehicle. Through on-going research we have discovered
that Toyota trucks have a unique pattern of being manufactured and sold
with varying degrees of rear to front rake. It appears that many Toyota
trucks are not the same height or possess the same rake as the same
stock truck sitting next to it. Our research has determined there can be
as much as 1.0 difference in rake and ride height from truck to truck.
TRD-equipped trucks often have less rake compared to a non-TRD
truck. Measurements on some customers trucks have revealed as much as
1.0 difference in the factory front end.
Watch Installation Video
ReadyLIFT 69-5276 Features
- Keeps your factory ride - Guaranteed
- Will never wear, break or fail - Guaranteed
- Toughest finish Guaranteed
- Safest way to lift - Guaranteed
- Precison crafted upper strut extensions designed to position the strut in the same mounting angle position.
- Kit
includes differential drop brackets which lowers the differential on
4WD models. This keeps the near factory CV angle specifications that
Toyota built into these great trucks.
- Includes new sway bar drop down spacers.
- Skid Plate Spacers provided to adjust the skid plate down when using differential drop brackets.
- E-coated finish on the strut extensions, rear blocks and u-bolts will last as long as your Toyota.
- Model-specific
rear blocks are designed FOR the Toyota Tundra. These are not universal
blocks. These are OEM-equivalent tapered cast iron rear blocks just
like the factory would make.
Professional installation time is
estimated at two to three hours. An alignment will be necessary upon
completion of installing the kit. Like all other ReadyLift kits, the
2012-2015 Tundra lift kit is guaranteed for life against manufacturing
defects.
Popular
wheel and tire sizes used for this vehicle include the stock rims
(17x8, 6.5 backspacing) with 33 tires, 20x8.5 rims with 285/65/20
tires. 35 tires will fit with minor modifications to the skid
plate. For information about tire and wheel sizes please visit the
ReadyLift Tire Sizing and Calculator Page.
Toyota Tundra SST Lift Kit 69-5076 3.0" Front / 2.0" Rear for TRD, SR5, Rock Warrior
